Daggerboard part iii

-
I'm hoping to finish this on part iv and do so this coming week but we'll see.

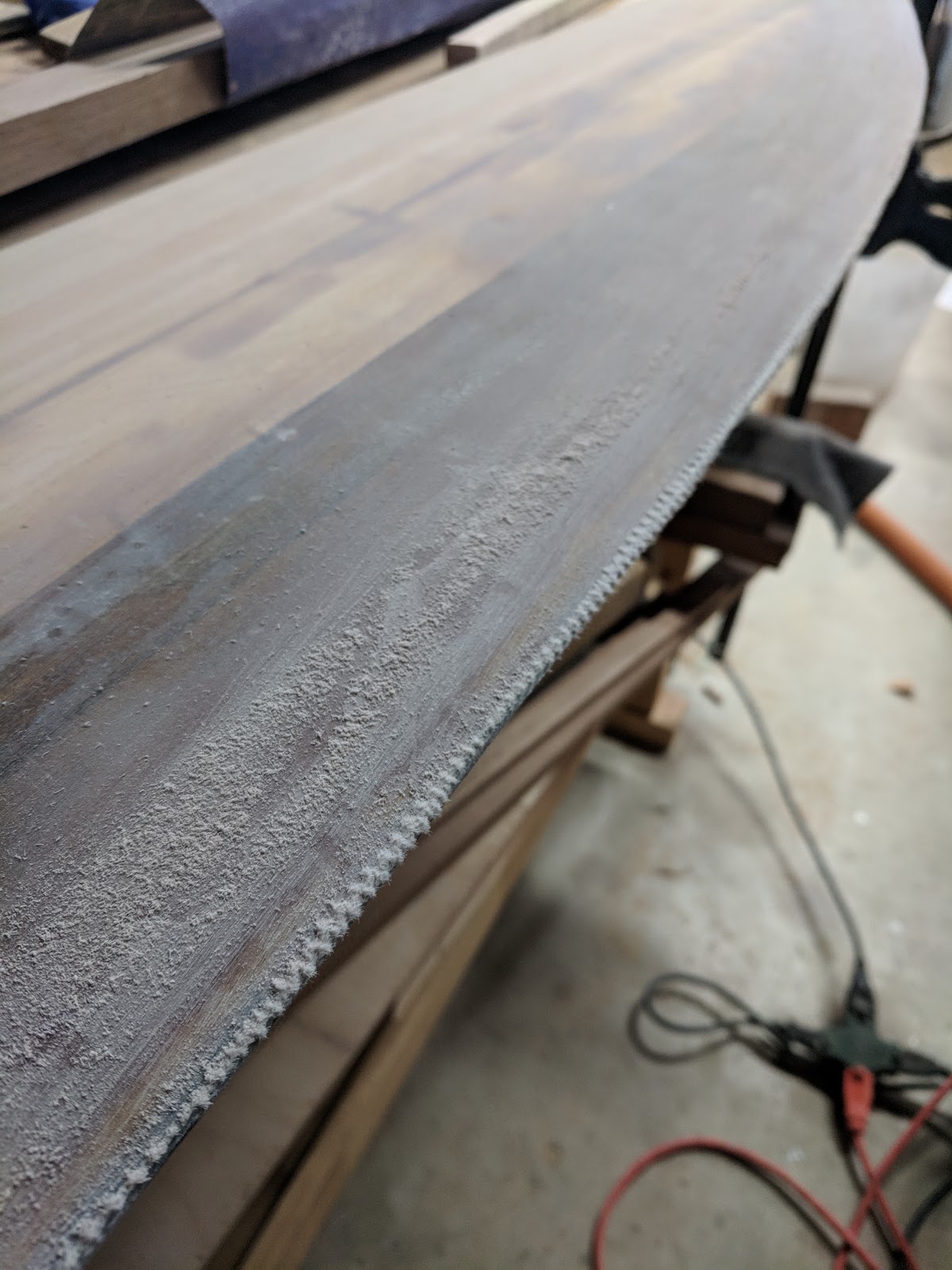

The leading edge looked good but the rope fluffed up on sanding.

The fluff sat down with a little epoxy but still not quite convinced by the penetration into the dyneema.

Feels tough though so i'm going to go ahead and skin over it and  we'll see in the long term.


And epoxy and clamp it down again.
